File Status Colors

Customize File Status Colors

These settings allow you to customize the file status colors on a per color scheme basis.

Introduction

File Status Colors is a feature of the IDE to colorize certain parts of the UI displaying a file according to its status. Some of the most obvious examples are:

  • Project View
  • Editor Tabs
  • Recent Files
  • Navigate to file/class/symbol
  • etc…

By status means relatively to version control systems, such as modified files, newly added files, deleted files, ignored files or conflicted files, for instance.

Originally these color settings were found inside the Color Schemes section of the settings, allowing color schemes designers to set their own file status colors, but at some point Jetbrains decided to remove this ability, having judged that it doesn’t make sense to have colors affecting the UI found inside settings affecting the editor.

While it does make sense, it was still a good thing to let people change these colors according to their themes. Agreed, Jetbrains doesn’t have custom UI Themes support, but why wouldn’t the ++Monokai theme++ creator change the Modified Files color to his shade of cyan? Or the Conflicted files to his shade of magenta? A lot of scheme designers supplied those colors so why remove this feature?

So after reconsideration, Jetbrains decided to let people customize file colors anyway, but instead of a per-color scheme basis, it is now per-application basis, and not provided by color scheme designers.

Therefore this ability has now moved under Version Control -> File Status Colors. But because these colors are related to the UI (e.g. IntelliJ or Darcula Look And Feel), these are not independant standalone settings but instead coupled to the relevant ++look and feel++. That means that those colors are found inside IntelliJ or Darcula Color Scheme rather than inside application settings.

But here, at Material Theme, decided to restore that feature to again allow color scheme designers to provided their own set of file status colors!

Material File Colors

These settings are not found inside the Material Theme Settings but instead in a specific section of the Color Schemes, just like before.

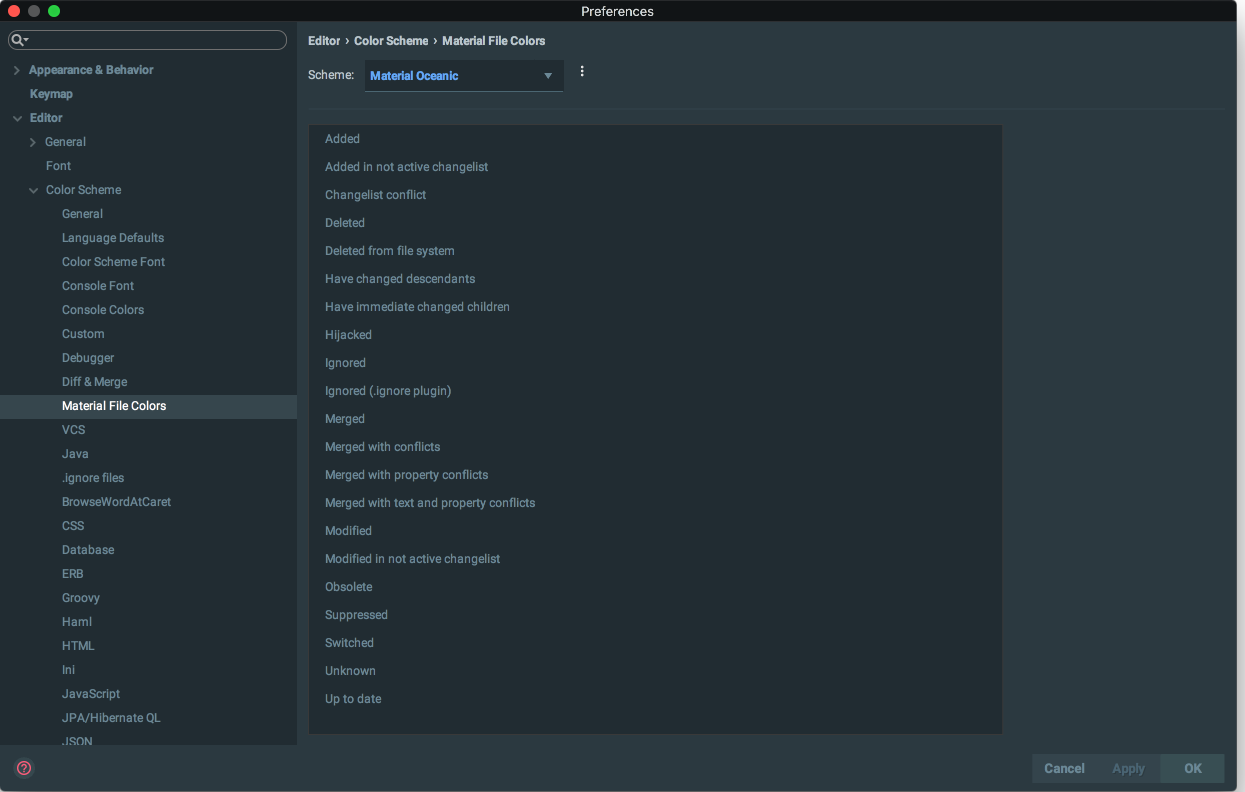

Material File Status Colors
Material File Status Colors

There you can override the File Status Colors from the IntelliJ/Darcula color scheme to the ones specified by the color scheme.

Here’s an explanation of the file statuses:

Title Material Color Explanation
Added #C3E88D (green) New file added to the repository in active changelist
Added outside #C3E88D (green) New file added to the repository in non-active changelist
Changelist conflict #d5756c (red) File modified in two changelists
Copied #C3E88D (green) File copied (Mercurial only)
Deleted #808080 (gray) File removed from the repository
Deleted from FS #808080 (gray) File deleted from the file system
Directories #FCFCFA (default text) Directory (depends on the Styled Directories setting).
Have changed descendants #80cbc4 (cyan) Directory has recursively changed files (not used)
Have immediate changed #80cbc4 (cyan) Directory has immediate changed descendants (not used)
Hijacked #ffcb6b (yellow) File is modified without editing (Perforce only)
Ignored #ab7967 (brown) File is ignored
Ignored (ignore plugin) #ab7967 (brown) File is ignored by the .ignore plugin
Merged #C792EA (violet) File is modified by a merge
Merged with conflicts #d5756c (red) File has conflicts
Modified #80cbcf (cyan) File modified in active changelist
Modified outside #82AAFF (blue) File modified in non-active changelist
Obsolete #ffcb6b (yellow) File is obsolete (SVN only)
Renamed #80CBC4 (cyan) File renamed (Mercurial only)
Switched #C792EA (violet) File from another branch (SVN only)
Suppressed #546E7A (comments color) File from a Virtual File System (like Scratches)
Unknown #d5756c (red) Unversioned file
Up to date none (default tree color) File unchanged



Other statuses may come from 3rd-party plugins and will have the default color provided by the plugin.

Note: Because this feature overrides the one from the IDE, changing colors via the regular screen (VCS -> File Status Colors) doesn’t make sense and will be overriden the next time you change the color scheme. So please use the Material File Colors from now on, even if you are on Darcula or a custom color scheme.

Directories

From version 2.9.0 a new entry named Directories has been added to the page, allowing to set a custom color to directories only, thus differentiating from regular files.

This setting depends on the Project View Settings’s Styled Directories and is disabled by default.

Styled Directories
Styled Directories

Note: Even though all customization options are available, only a portion of them is actually working. These are Bold, Italic, Foreground, Error Stripe Mark, Underscored and Underwaved. The rest won’t work.


Advanced customization

If you’re a color scheme designer and want to make use of this feature for your color scheme, please insert those keys inside your .icls or .xml file (after replacing the values). Note that if you already defined colors when the IDE feature was still working, it will work again when using the plugin.

  <colors>
        <option name="FILESTATUS_ADDED" value="C3E88D"/>
        <option name="FILESTATUS_COPIED" value="C3E88D"/>
        <option name="FILESTATUS_DELETED" value="808080"/>
        <option name="FILESTATUS_HIJACKED" value="ffcb6b"/>
        <option name="FILESTATUS_IDEA_FILESTATUS_DELETED_FROM_FILE_SYSTEM" value="808080"/>
        <option name="FILESTATUS_IDEA_FILESTATUS_IGNORED" value="ab7967"/>
        <option name="FILESTATUS_IDEA_SVN_FILESTATUS_EXTERNAL" value="c3e88d"/>
        <option name="FILESTATUS_IGNORE.PROJECT_VIEW.IGNORED" value="ab7967"/>
        <option name="FILESTATUS_MERGED" value="C792EA"/>
        <option name="FILESTATUS_MODIFIED" value="80cbc4"/>
        <!--<option name="FILESTATUS_NOT_CHANGED" value="626669"/>-->
        <option name="FILESTATUS_NOT_CHANGED_IMMEDIATE" value="80cbc4"/>
        <option name="FILESTATUS_NOT_CHANGED_RECURSIVE" value="80cbc4"/>
        <option name="FILESTATUS_SWITCHED" value="C792EA"/>
        <option name="FILESTATUS_SUPPRESSED" value="979FAD"/>
        <option name="FILESTATUS_UNKNOWN" value="f77669"/>
        <option name="FILESTATUS_addedOutside" value="C3E88D"/>
        <option name="FILESTATUS_changelistConflict" value="d5756c"/>
        <option name="FILESTATUS_modifiedOutside" value="82AAFF"/>
  </colors>

Caveats

Because this feature modifies the original VCS File Colors feature, please bear in mind the following issues:

  • When switching to other scheme that do not define file status colors, some defaults will be applied which are not the defaults provided by Darcula/IntelliJ, and therefore look bad.
  • Uninstalling/Disabling the plugin will not revert back these settings, so you will still keep the last file colors even after restarting.

Thankfully there is an easy fix for that: in the VCS File Colors there is a button Reset Default that will revert the value back to the Darcula/IntelliJ default. Note however that as soon as you change a color scheme the values will change back again.

Restore Default
Restore Default
